FULL AMPLIFIER SYSTEMS

Our solid-state amplifier systems are self-contained and fully protected. The system includes a power supply, amplifier module, cooling, additional protection features (see below), front panel indicators and monitors. The system enclosure can stand alone on a bench or be rack mounted.

GENERAL SPECIFICATIONS

Size:	19" x 7" x 18" (W x H x L); 47.5 cm x 17.5 cm x 45.0 cm
Weight:	35 lbs maximum (15.9 Kg)
Cooling:	Forced air (self-contained fans)
AC Power:	120 VAC - 60 Hz / 230 VAC - 50 Hz
RF Connectors:	Type N Female
Panel Display:	RF In, RF Out, Current Meter, Blanking, Thermal Shutdown, Power Light, Over Current Warning, Fuses.

Options

Computer controlled option with IEEE-488 Interface available

RUGGED PROTECTION SYSTEM

The amplifier rack-mount system has multiple protection features which provide rugged, reliable operation under conditions of amplifier abuse. Specifically,

The amplifier module has been designed to have intrinsic protection against bad loads. Also, the module is operated at 24 VDC instead of its rated 28 VDC for an extra margin of safety from voltage breakdown.
The amplifier system has automated current limiting. A current limiting condition may arise when operated into a high VWSR load. The system will not shut down under current limiting conditions and will continue to operate and automatically and transparently recover.
Electrical fuse protection is also provided to protect the amplifier module in the event the system is overdriven by a fast pulse which exceeds the response time of the automatic current limiting.

TOP VIEW

SIDE VIEW

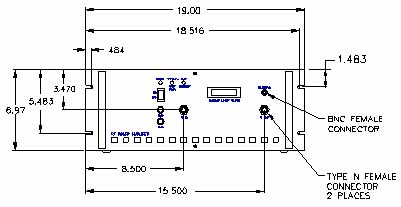

FRONT VIEW

Specifications

1 MHz - 30 MHz

Part Number	Output Power	Gain
30-1-50-45	50W	45dB
30-1-100-45	100W	45dB
30-1-150-45	150W	45dB
30-1-200-45	200W	45dB

30 MHz - 100 MHz

Part Number	Output Power	Gain
100-30-50-45	50W	45dB
100-30-100-45	100W	45dB
100-30-150-45	150W	45dB

50 MHz - 150 MHz

Part Number	Output Power	Gain
150-50-50-45	50W	45dB
150-50-100-45	100W	45dB
150-50-150-45	150W	45dB

100 MHz - 200 MHz

Part Number	Output Power	Gain
200-150-50-45	50W	45dB
200-150-100-45	100W	45dB
200-100-160-45	160W	45dB

50 MHz - 250 MHz

Part Number	Output Power	Gain
250-50-50-45	50W	45dB
250-50-100-20	100W	20dB
250-50-100-28	100W	28dB
250-50-100-45	100W	45dB

4 MHz - 400 MHz

Part Number	Output Power	Gain
400-4-4-40	4W	40dB

225 MHz - 400 MHz

Part Number	Output Power	Gain
400-225-10-45	10W	45dB
400-225-30-20	30W	20dB
400-225-30-28	30W	28dB
400-225-30-45	30W	45dB
400-225-50-20	50W	20dB
400-225-50-28	50W	28dB
400-225-50-45	50W	45dB
400-225-100-20	100W	20dB
400-225-100-28	100W	28dB
400-225-100-45	100W	45dB

290 MHz - 320 MHz

Part Number	Output Power	Gain
320-290-100-45	100W	45dB
320-290-30-45	30W	45dB

225 MHz - 600 MHz

Part Number	Output Power	Gain
600-225-20-20	20W	20dB
600-225-20-28	20W	28dB
600-225-20-45	20W	45dB
600-225-40-20	40W	20dB
600-225-40-28	40W	28dB
600-225-40-45	40W	45dB

400 MHz - 600 MHz

Part Number	Output Power	Gain
600-400-30-20	30W	20dB
600-400-30-28	30W	28dB
600-400-30-45	30W	45dB

30 MHz - 500 MHz

Part Number	Output Power	Gain
500-30-40-45	40W	45dB

100 MHz - 500 MHz

Part Number	Output Power	Gain
500-100-5-40	5W	40dB
500-100-10-40	10W	40dB
500-100-50-40	50W	40dB
500-100-100-40	100W	40dB

500 MHz - 1000 MHz

Part Number	Output Power	Gain
1000-500-5-40	5W	40dB
1000-500-10-28	10W	28dB
1000-500-10-26	10W	26dB
1000-500-10-35	10W	35dB

10 MHz - 1200 MHz

Part Number	Output Power	Gain
1200-10-5-40	5W	40dB
1200-10-10-18	10W	18dB
1200-10-10-26	10W	26dB
1200-10-10-35	10W	35dB
